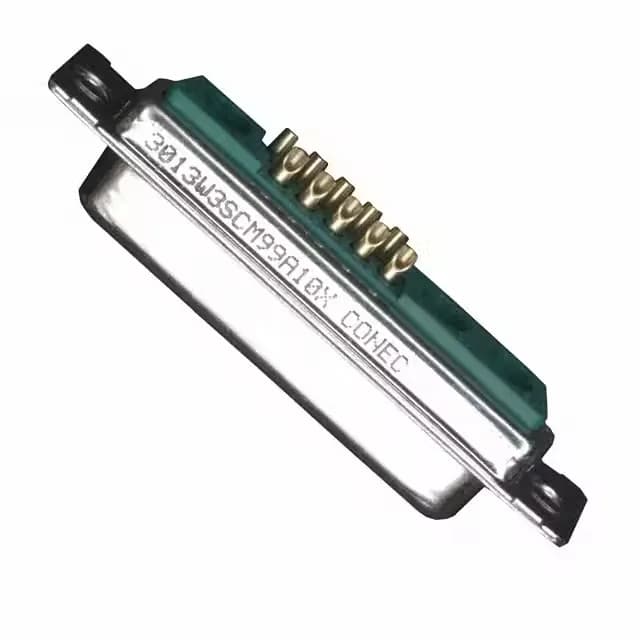

Conec 3013W3SCM99A10X
MPN3013W3SCM99A10X
Active
CONN D-SUB RCPT 13POS SLDR CUP
$15.04Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Signal and Coax or Power (Not Included) |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Current rating | 5A |
| Wire gauge | 20 AWG |
| Shell size, connector layout | 3 (DB, B) - 13C3, 13W3 |
| Operating temperature | -55°C ~ 125°C |
| Color | Green |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 13 (10 + 3 Coax or Power) |
| Contact finish thickness | 30.0µin (0.76µm) |
