Conec 303W3CSXX99A30X
MPN303W3CSXX99A30X
Active

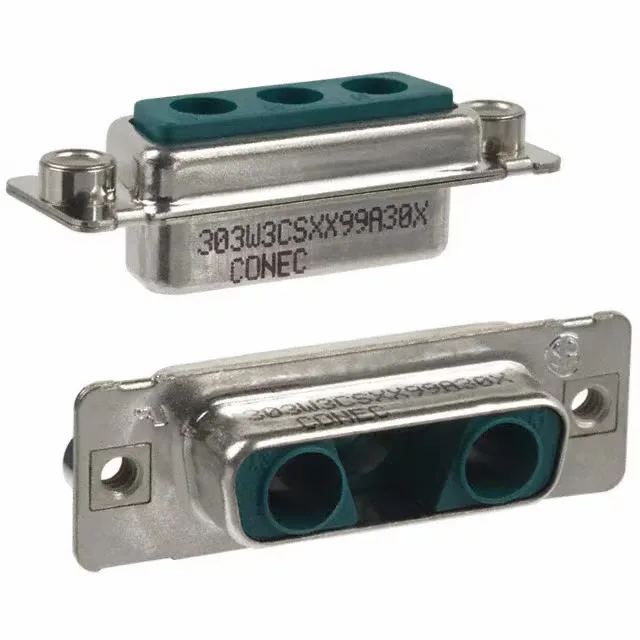

CONN D-SUB HOUSING RCPT 3POS
$5.53Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Coax or Power |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle for Female Contacts |
| IP rating | IP20 |
| Shell size, connector layout | 2 (DA, A) - 3V3, 3W3K, 3W3CS |
| Operating temperature | -55°C ~ 125°C |
| Color | Green |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Note | Contacts Not Included |
| Package | Tray |
| Flange feature | Cable Side (4-40) |
| Rows | 1 |
| Positions | 3 (Coax or Power) |
| Shell finish thickness | 320µin (8.13µm) |
