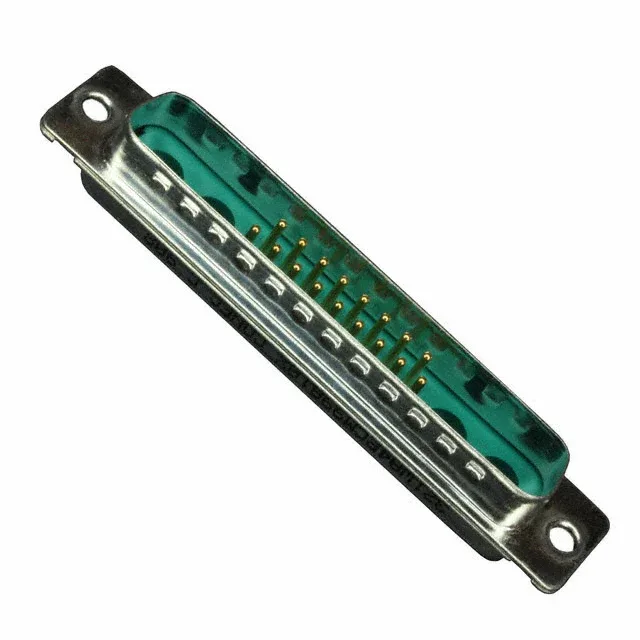

Conec 321WA4PCM99A10X
MPN321WA4PCM99A10X
Active
CONN D-SUB PLUG 21POS SLDR CUP
$15.33Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Signal and Coax or Power (Not Included) |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Current rating | 5A |
| Shell size, connector layout | 4 (DC, C) - 21WA4 |
| Operating temperature | -55°C ~ 125°C |
| Color | Green |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Grounding Indents |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 21 (17 + 4 Coax or Power) |
| Contact finish thickness | 30.0µin (0.76µm) |
