Conec 321WA4SCT56N40X
MPN321WA4SCT56N40X
Active

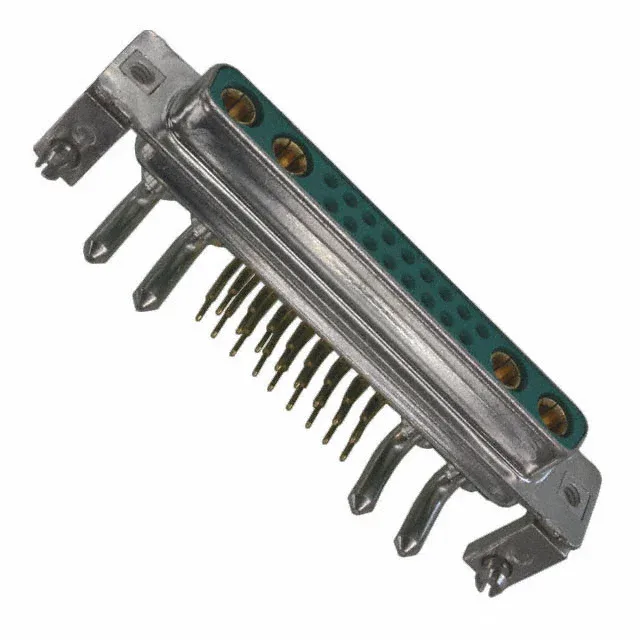

CONN D-SUB RCPT 21POS R/A SLDR
$42.06Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Signal and Power |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 250V |
| Current rating | 5A, 20A |
| Shell size, connector layout | 4 (DC, C) - 21WA4 |
| Operating temperature | -55°C ~ 125°C |
| Color | Green |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Positions | 21 (17 + 4 Power) |
| Contact finish thickness | 30.0µin (0.76µm) |
