Conec 43-00096
MPN43-00096
Active

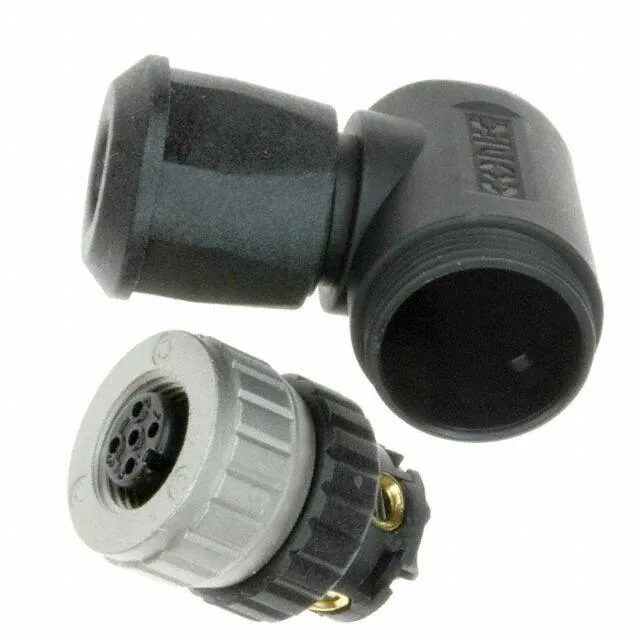

CONN PLUG FMALE 4POS GOLD SCREW
$11.22Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series43
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 43 |
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Plug, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 250V |
| Current rating | 4A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.236\" ~ 0.315\" (6.00mm ~ 8.00mm) |
| Operating temperature | -30°C ~ 85°C |
| Color | Black, Silver |
| Shell material | Polyamide (PA6), Nylon 6, Glass Filled |
| Insert material | Polyamide (PA6), Nylon 6 |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Zinc |
| Primary material | Plastic |
| Backshell material, plating | Polyamide (PA6), Nylon 6, Glass Filled |
| Material flammability rating | UL94 |
| Package | Bulk |
| Features | Coupling Nut |
| Shielding | Unshielded |
| Orientation | A |
| Termination | Screw |
| Positions | 4 |
| Shell size - insert | M12-4 |
| Contact finish - mating | Gold |
