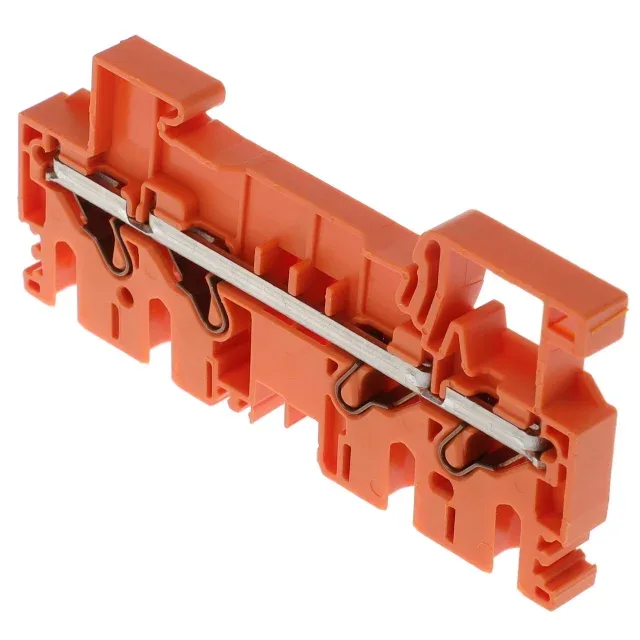

Conta-Clip, Inc. PRK 4/4A OG
MPNPRK 4/4A OG
Active
FEED THRU TB PUSH-INORANGE
$3.18Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPRK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Feed Through |
| Series | PRK |
| Voltage - IEC | 800V |
| Current - IEC | 32 A |
| Terminal - width | 6.1mm |
| Wire gauge or range - AWG | 10-21 AWG |
| Wire gauge or range - mm2 | 0.5-6mm² |
| Color | Orange |
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Number of levels | 1 |
| Stripping length | 12mm |
| Termination style | Push In, Spring |
| Positions | 4 |
