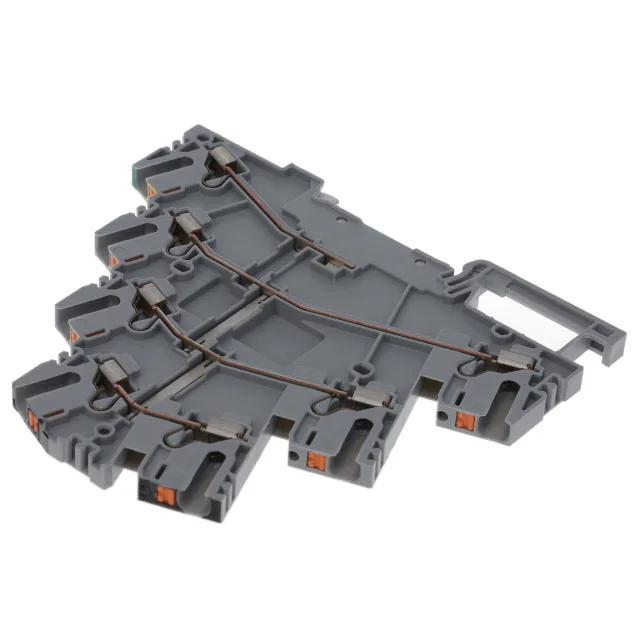

Conta-Clip, Inc. PVMAK 2,5/SV GR
MPNPVMAK 2,5/SV GR
Active
MOTOR CONNECT TBGREY
$11.9Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPVMAK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Feed Through (3), Isolated |
| Series | PVMAK |
| Voltage - IEC | 800V |
| Current - IEC | 20 A |
| Terminal - width | 5.1mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Wire gauge or range - mm2 | 0.14-4mm² |
| Color | Gray |
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Number of levels | 4; 1 Grounded |
| Stripping length | 10mm |
| Termination style | Push In, Spring |
| Positions | 7 |
