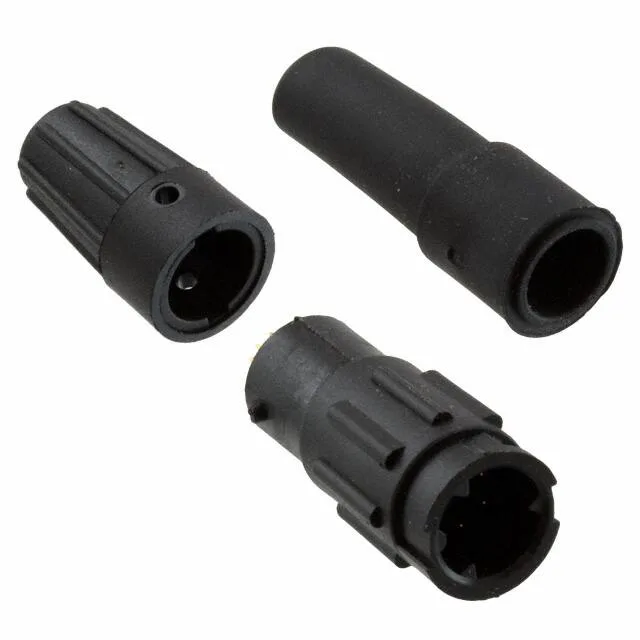

Conxall/Switchcraft 18982-7PG-522
MPN18982-7PG-522
Active
CONN RCPT MALE 7P GOLD SLDR CUP
$14.16Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-Con-X®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Con-X® |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Male Pins |
| Fastening type | Bayonet Lock |
| Voltage rating | 600VAC/DC |
| Current rating | 3.5A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.220\" ~ 0.230\" (5.59mm ~ 5.84mm) |
| Operating temperature | -40°C ~ 85°C |
| Color | Black |
| Shell material | Thermoplastic |
| Contact material | Copper Alloy |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Plastic |
| Backshell material, plating | Thermoplastic |
| Material flammability rating | UL94 HB |
| Package | Bulk |
| Features | Backshell |
| Shielding | Unshielded |
| Orientation | B |
| Termination | Solder Cup |
| Applications | Data, Industrial, Instrumentation, Medical |
| Positions | 7 |
| Contact finish - mating | Gold |
