Conxall/Switchcraft 5280-4PG-315
MPN5280-4PG-315
Active

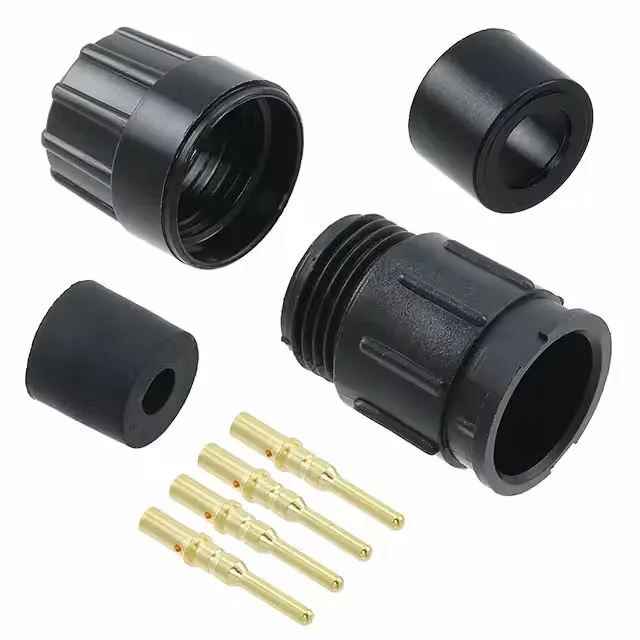

CONN RCPT MALE 4POS GOLD CRIMP
$10.04Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMulti-Con-X®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Multi-Con-X® |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Male Pins |
| Fastening type | Bayonet Lock |
| Voltage rating | 600V |
| Current rating | 5.6A |
| IP rating | Weathertight |
| Cable opening | 0.150\" ~ 0.170\" (3.81mm ~ 4.32mm) |
| Operating temperature | -40°C ~ 115°C |
| Color | Black |
| Shell material | Polyamide (PA), Nylon |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Plastic |
| Backshell material, plating | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Backshell |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Crimp |
| Positions | 4 |
| Contact finish - mating | Gold |
