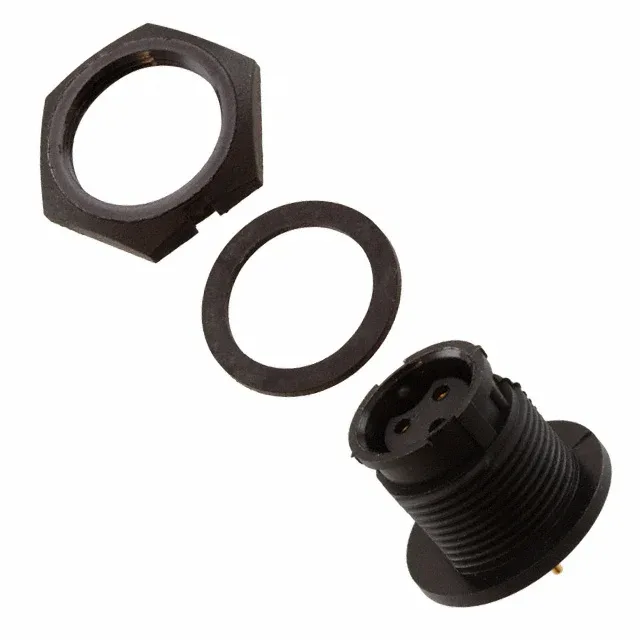

Conxall/Switchcraft 7281-3SG-300
MPN7281-3SG-300
Active
CONN RCPT FMALE 3POS GOLD SOLDER
$6.64Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini-Con-X®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-Con-X® |
| Mounting | Panel Mount, Through Hole |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Bayonet Lock |
| Voltage rating | 600V |
| Current rating | Varies by Wire Gauge |
| IP rating | Weathertight |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -40°C ~ 115°C |
| Color | Black |
| Shell material | Polyamide (PA), Nylon |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Plastic |
| Backshell material, plating | Polyamide (PA), Nylon |
| Package | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder |
| Applications | Automotive, Communication Systems, Instrumentation |
| Positions | 3 |
| Contact finish - mating | Gold |
