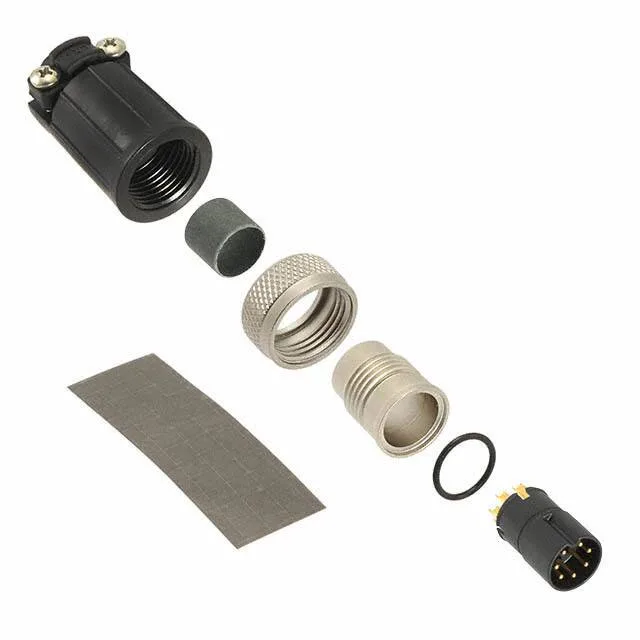

Conxall/Switchcraft SF6282-7PG-520
MPNSF6282-7PG-520
Active
CONN PLUG MALE 7P GOLD SLDR CUP
$38.75Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesShielded Mini-Con-X®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Shielded Mini-Con-X® |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Threaded |
| IP rating | IP66/IP68 - Dust Tight, Water Resistant, Waterproof |
| Operating temperature | -40°C ~ 120°C |
| Color | Black, Silver |
| Shell material | Copper Alloy |
| Insert material | Polyester Resin |
| Contact material | Copper Alloy |
| Primary material | Metal |
| Backshell material, plating | Polyamide (PA), Nylon, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Shielding | Shielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Shell finish | Nickel |
| Positions | 7 |
| Contact finish - mating | Gold |
