W6C82-6SG-528 - Conxall/Switchcraft
MPNW6C82-6SG-528
Active

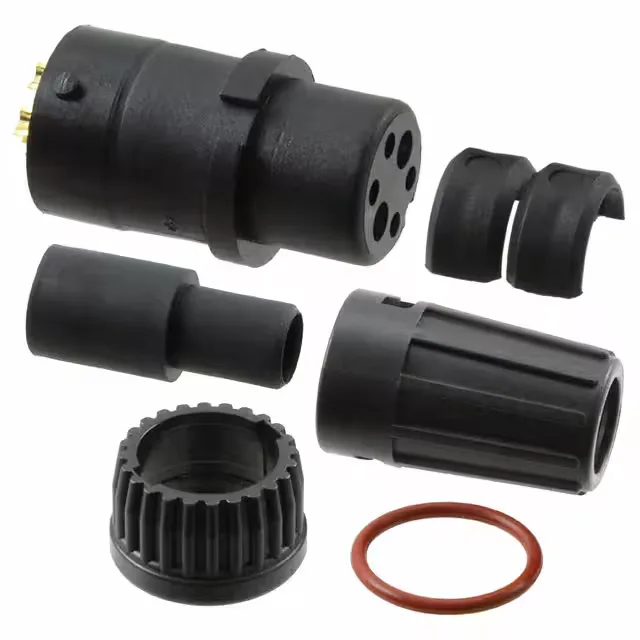

CONN PLUG FMALE 6P GOLD SLDR CUP
$17.5Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini-Con-X® Insta-Click™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-Con-X® Insta-Click™ |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Female Sockets |
| Fastening type | Bayonet Lock |
| Voltage rating | 125V |
| Current rating | Varies by Wire Gauge |
| IP rating | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.260\" ~ 0.285\" (6.60mm ~ 7.24mm) |
| Operating temperature | -40°C ~ 85°C |
| Color | Black |
| Shell material | Thermoplastic |
| Insert material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Plastic |
| Backshell material, plating | Thermoplastic |
| Package | Bulk |
| Features | Backshell, Coupling Nut, UV Resistant |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Automotive, Communication Systems, Instrumentation |
| Positions | 6 (4 + 2 Power) |
| Contact finish - mating | Gold |
