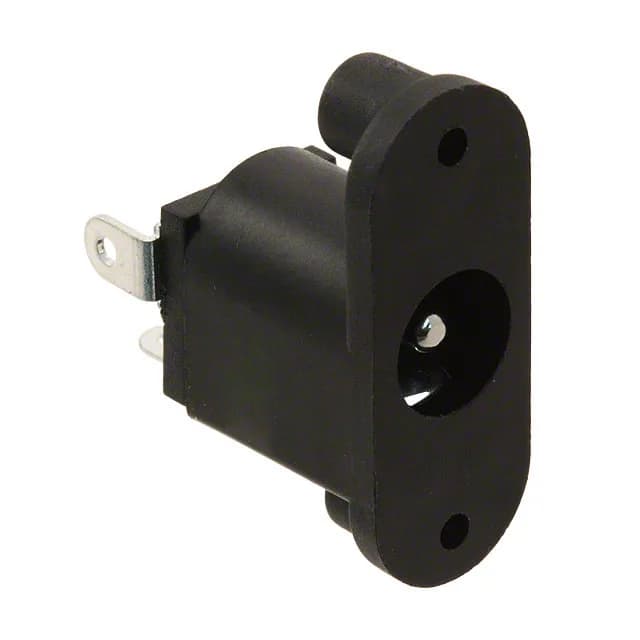

CUI Devices PJ-039A
MPNPJ-039A
Active
$0.6800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 2.5 A |
| Mounting feature | Flange |
| Operating temperature | -25°C ~ 85°C |
| Body color | Black |
| Contact material | Brass, Copper Alloy |
| Housing material | Polybutylene Terephthalate (PBT) |
| Mating length (Depth) | 0.354\" (9.00mm) |
| Contact material - plating | Tin |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Gender | Male |
| Package | Bag |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Manufacturer | CUI Devices |
| Actual diameter | 0.079\" (2.00mm ID), 0.248\" (6.30mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.00mm ID (0.079\"), 5.50mm OD (0.217\") |
