Curtis Industries 562000040
MPN562000040
Active

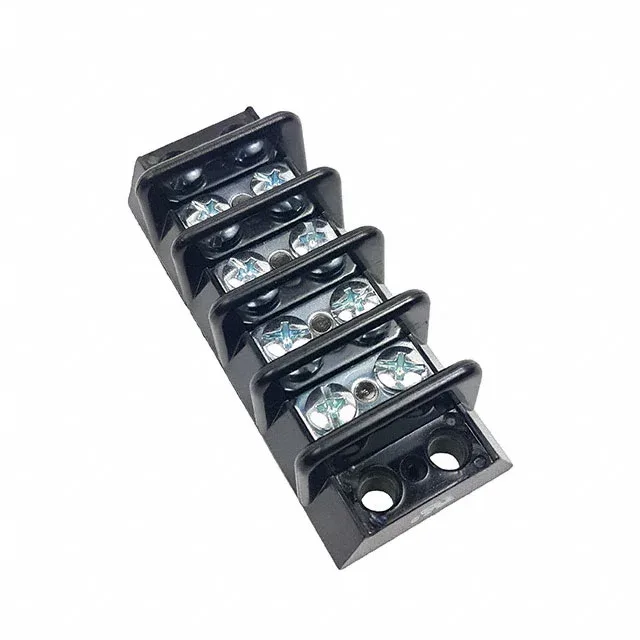

CONN BARRIER STRIP 4CIRC 0.563"
$5.83Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series5600
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 5600 |
| Barrier type | 2 Wall (Dual) |
| Mounting | Chassis, Panel |
| Terminal block type | Barrier Block |
| Voltage rating | 600V |
| Current rating | 35A |
| Wire gauge | 8-22 AWG |
| Terminal screw finish | Zinc |
| Number of wire entries | 8 |
| Terminal screw material | Steel |
| Operating temperature | 150°C |
| Material - insulation | Phenol Formaldehyde (Phenolic) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.563\" (14.30mm) |
| Package | Bulk |
| Features | Flange |
| Rows | 2 |
| Top termination | Screws |
| Bottom termination | Closed |
| Number of circuits | 4 |
