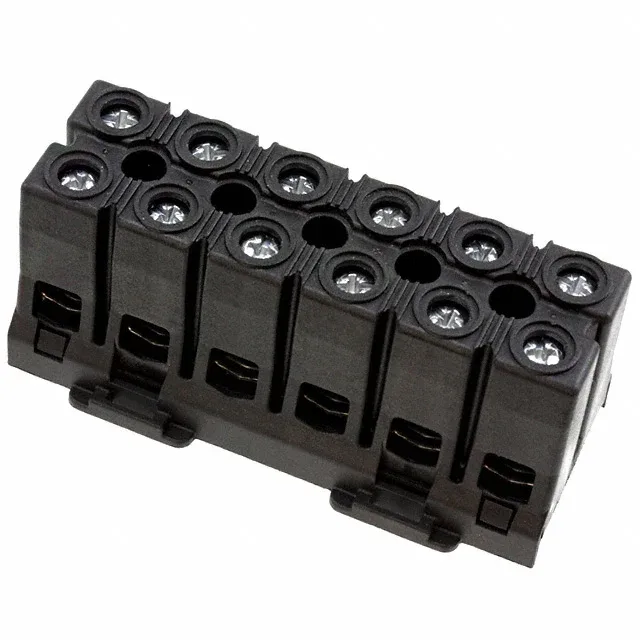

Curtis Industries 71026000
MPN71026000
Active
CONN BARRIER STRIP 6CIRC 0.629"
$16.54Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series71000
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 71000 |
| Barrier type | Enclosed |
| Mounting | Channel, DIN Rail, Track |
| Terminal block type | Barrier Block |
| Voltage rating | 600V |
| Current rating | 50A, 86A |
| Wire gauge | 1-22 AWG |
| Number of wire entries | 12 |
| Operating temperature | 140°C |
| Material - insulation | Polybutylene Terephthalate (PBT), Polyester |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.629\" (15.98mm) |
| Package | Bulk |
| Rows | 2 |
| Top termination | Screws |
| Bottom termination | Closed |
| Number of circuits | 6 |
