Curtis Industries T38111-16-0
MPNT38111-16-0
Active

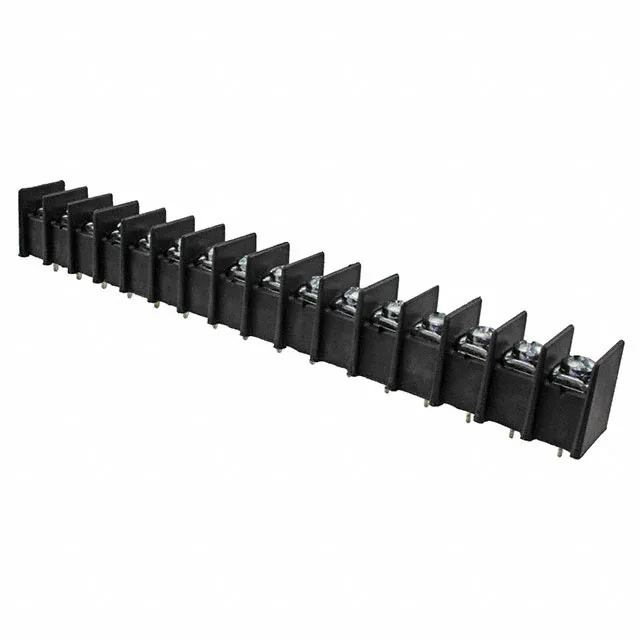

CONN BARRIER STRP 16CIRC 0.375"
$11.01Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series38000
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 38000 |
| Barrier type | 2 Wall (Dual) |
| Mounting | Chassis, Panel; Through Hole |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 20A |
| Wire gauge | 12-22 AWG |
| Number of wire entries | 16 |
| Operating temperature | 105°C |
| Material - insulation | Polypropylene (PP) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.375\" (9.53mm) |
| Package | Bulk |
| Rows | 1 |
| Top termination | Screws with Captive Plate |
| Bottom termination | PC Pin |
| Number of circuits | 16 |
