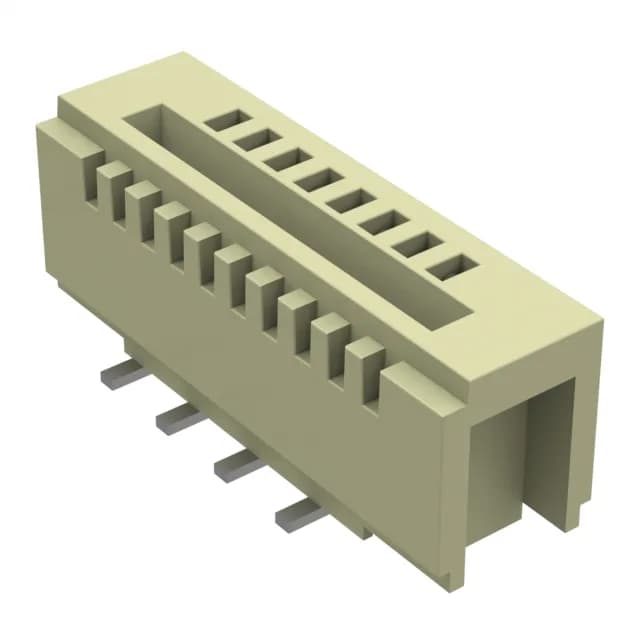

Cvilux USA CF16081M0R0-NH
MPNCF16081M0R0-NH
Active
CONN FFC FPC VERT 8POS 1MM SMD
$0.3300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCF16
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CF16 |
| Mounting | Surface Mount |
| Cable end type | Straight, Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 100V |
| Current rating | 0.5A |
| Operating temperature | -40°C ~ 105°C |
| Housing color | Natural |
| Housing material | Thermoplastic, Halogen Free |
| Height above board | 0.205\" (5.20mm) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Low Insertion Force (LIF), Pick and Place Cap |
| Termination | Solder |
| Contact finish | Tin |
| FFC, FCB thickness | 0.29mm ~ 0.34mm |
| Positions | 8 |
