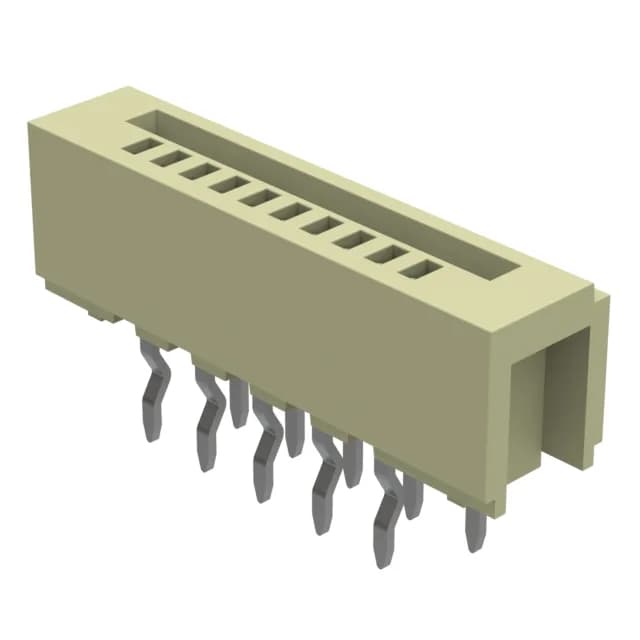

Cvilux USA CF16101V0T0-NH
MPNCF16101V0T0-NH
Active
CONN FFC FPC VERT 10POS 1MM PCB
$0.3300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCF16
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CF16 |
| Mounting | Through Hole |
| Cable end type | Straight, Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 100V |
| Current rating | 0.5A |
| Operating temperature | -40°C ~ 105°C |
| Housing color | Natural |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free |
| Height above board | 0.197\" (5.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tube |
| Features | Low Insertion Force (LIF) |
| Termination | Kinked Pin |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 10 |
