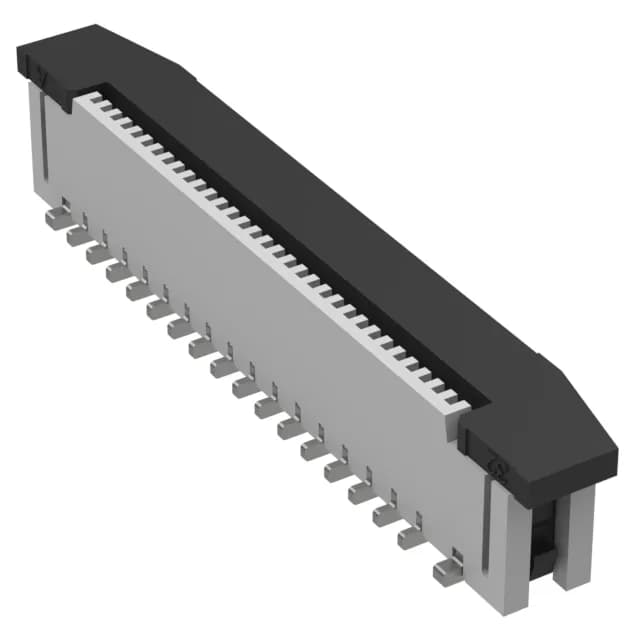

Cvilux USA CF20321V0R0-NH
MPNCF20321V0R0-NH
Active
CONN FFC VERT 32POS 0.5MM SMD
$0.6300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCF20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CF20 |
| Mounting | Surface Mount |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 50V |
| Current rating | 0.4A |
| Operating temperature | -25°C ~ 85°C |
| Housing color | Natural |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic, Halogen Free |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Thermoplastic, Halogen Free |
| Height above board | 0.154\" (3.90mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 32 |
| Contact finish thickness | 120.0µin (3.05µm) |
