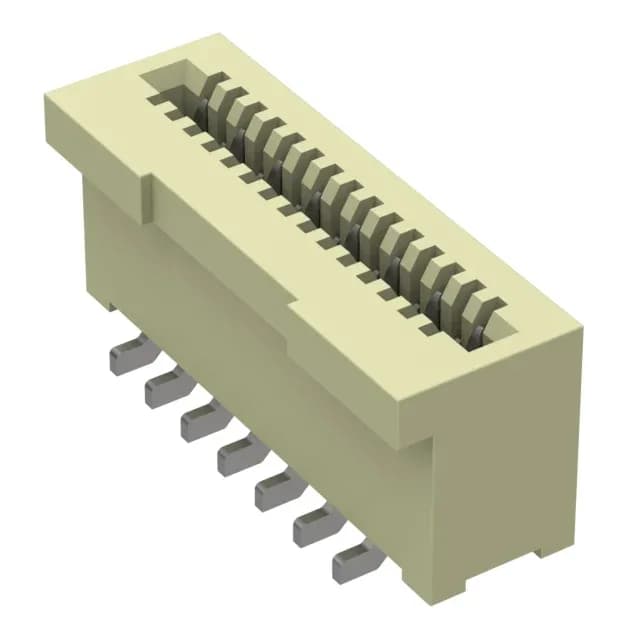

Cvilux USA CF24152V0R0-NH
MPNCF24152V0R0-NH
Active
CONN FFC VERT 15POS 0.5MM SMD
$0.4400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCF24
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CF24 |
| Mounting | Surface Mount |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 50V |
| Current rating | 0.4A |
| Operating temperature | -25°C ~ 85°C |
| Housing color | Natural |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA6T), Nylon 6T, Halogen Free |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Polyamide (PA6T), Nylon 6T, Halogen Free |
| Height above board | 0.165\" (4.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Low Insertion Force (LIF), Pick and Place Cap |
| Termination | Solder |
| Contact finish | Gold |
| FFC, FCB thickness | 0.30mm |
| Positions | 15 |
| Contact finish thickness | Flash |
