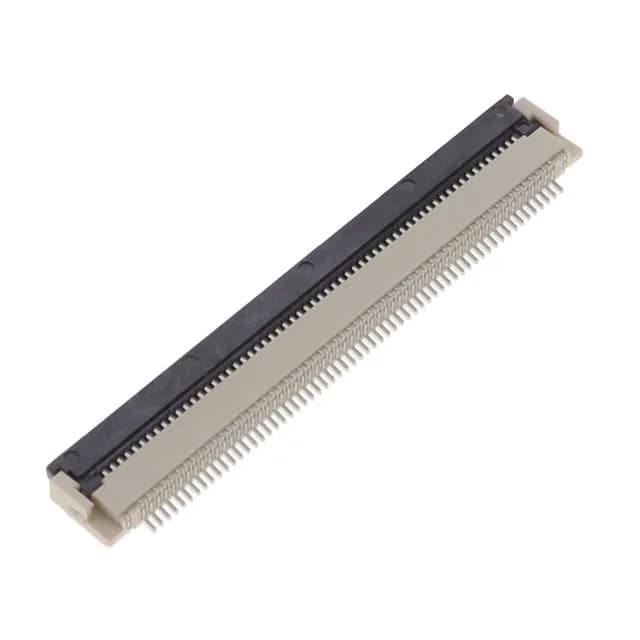

Cvilux USA CF31601D0R0-05-NH
MPNCF31601D0R0-05-NH
Active
CONN FFC BOTTOM 60POS 0.5MM R/A
$0.5600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCF31
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CF31 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -40°C ~ 85°C |
| Housing color | Natural |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic, Halogen Free |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Thermoplastic, Halogen Free |
| Height above board | 0.077\" (1.95mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Contact finish | Tin |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.29mm ~ 0.34mm |
| Positions | 60 |
| Contact finish thickness | 80.0µin (2.03µm) |
