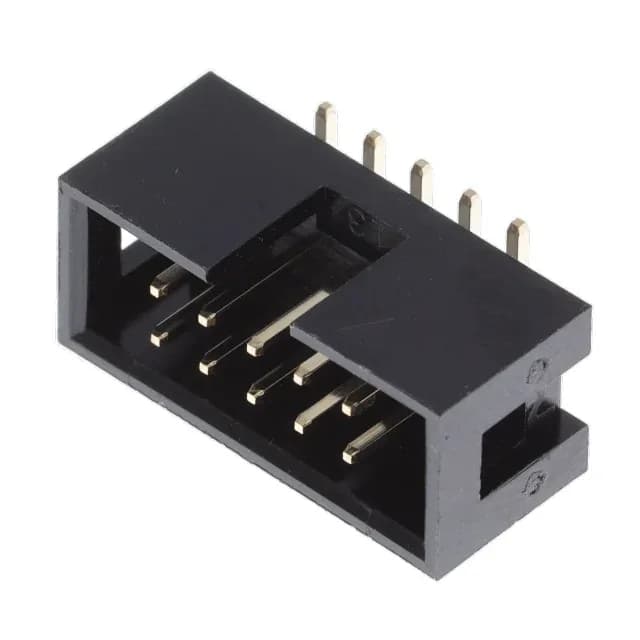

Cvilux USA CH87102M1P0-R0
MPNCH87102M1P0-R0
Active
CH87 SERIES 2.54MM(.100) DUAL RO
$1.3600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCH87
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CH87 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
