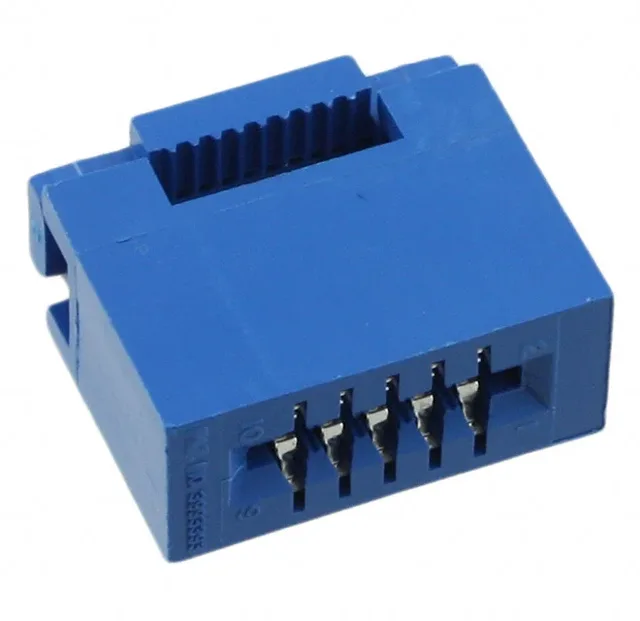

CW Industries CWR-170-10-0203
MPNCWR-170-10-0203
Active
CONN EDGE DUAL FMALE 10POS 0.100
$2.63Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series170
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 170 |
| Card type | Non Specified - Dual Edge |
| Type | Cantilever |
| Mounting | Free Hanging (In-Line) |
| Operating temperature | -55°C ~ 125°C |
| Color | Blue |
| Contact material | Phosphor Bronze |
| Material - insulation | Thermoplastic |
| Pitch | 0.100\" (2.54mm) |
| Gender | Female |
| Package | Bulk |
| Read out | Dual |
All specifications
| Parameter | Value |
|---|---|
| Termination | IDC |
| Card thickness | 0.032\" ~ 0.070\" (0.81mm ~ 1.78mm) |
| Contact finish | Tin |
| Rows | 2 |
| Positions | 10 |
| Contact finish thickness | 100.0µin (2.54µm) |
| Number of positions (Bay, row) | 5 |
