CW Industries CWR-281-09-0203
MPNCWR-281-09-0203
Active

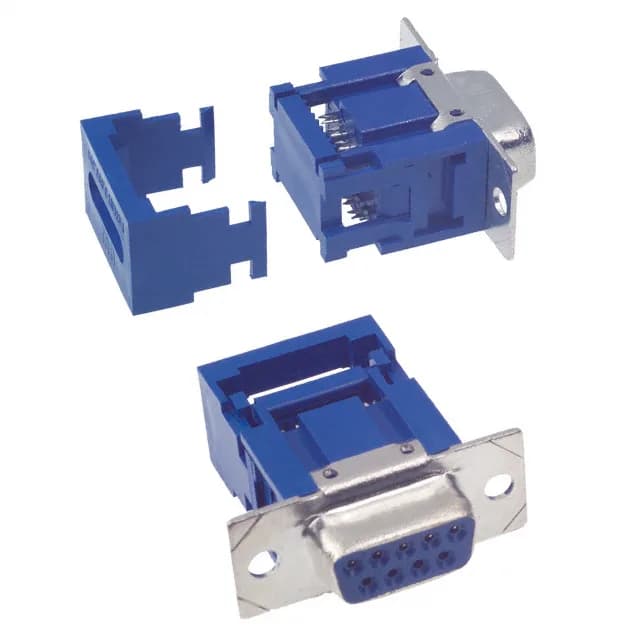

CONN D-SUB PLUG 9POS IDC
$13.3300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCWR
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CWR |
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Female Sockets |
| Current rating | 1A |
| Wire gauge | 28-30 AWG |
| Shell size, connector layout | 1 (DE, E) |
| Color | Blue |
| Contact material | Phosphor Bronze |
| Dielectric material | Thermoplastic |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Feed Through, Shielded, Strain Relief |
| Termination | IDC, Ribbon Cable |
| Contact finish | Tin |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | 100.0µin (2.54µm) |
