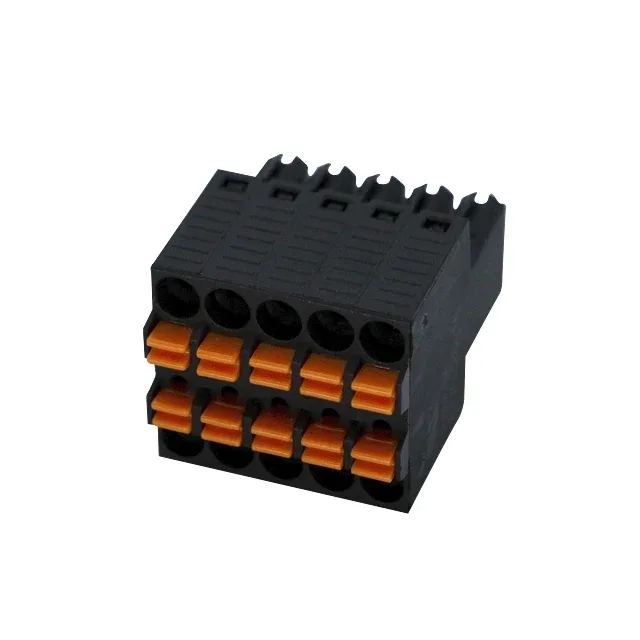

Dinkle Corporation, USA 0156-2B10-BK

Dinkle Corporation, USA 0156-2B10-BK

MPN 0156-2B10-BK
Active

TERM BLK 10POS 3.50MM PID PLG

$13.71 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Series0156-2B
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

0156-2B10-BK specifications
ParameterValue
TypePlug, Female Sockets
Series0156-2B
MountingFree Hanging (In-Line)
Voltage - UL150 V
Voltage - IEC320 V
Current - UL8 A
Current - IEC15A
Plug wire entry180°
Wire gauge or range - AWG16-28 AWG
Wire gauge or range - mm20.2-1.5mm²
Operating temperature-40°C ~ 120°C
ColorBlack
PackageBulk
Number of levels2
Termination styleScrewless - Leg Spring, Push-In Spring
Positions10
Positions per level5
Contact mating finishTin
MPN
0156-2B10-BK
