Dinkle Corporation, USA 0159-0326
MPN0159-0326
Active

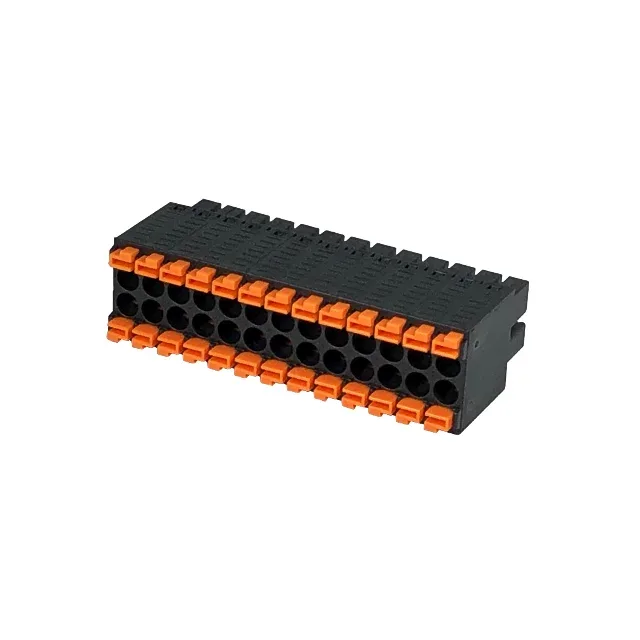

TERM BLK 26POS 3.50MM PID PLG
$31.57Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 250 V |
| Current - UL | 8 A |
| Current - IEC | 8A |
| Wire gauge or range - AWG | 16-24 AWG |
| Wire gauge or range - mm2 | 0.2-1.5mm² |
| Operating temperature | -40°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.522\" (13.25mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Number of levels | 2 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Contact mating finish | Tin |
