Dinkle Corporation, USA 0225-0116
MPN0225-0116
Active

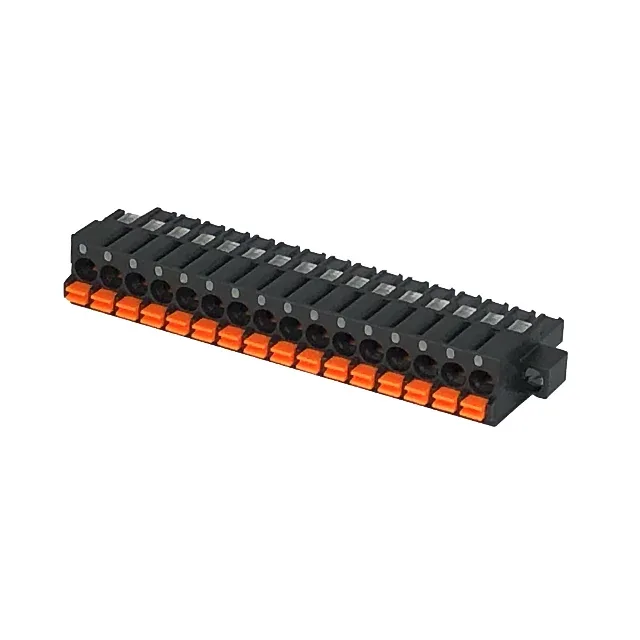

TERM BLK 16POS 3.50MM PID PLG
$30.71Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series0225-01
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 0225-01 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 630 V |
| Current - UL | 8 A |
| Current - IEC | 15A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 16-28 AWG |
| Wire gauge or range - mm2 | 0.2-1.5mm² |
| Operating temperature | -40°C ~ 120°C |
| Color | Black |
| Pitch | 0.138\" (3.50mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 16 |
| Positions per level | 16 |
| Contact mating finish | Tin |
