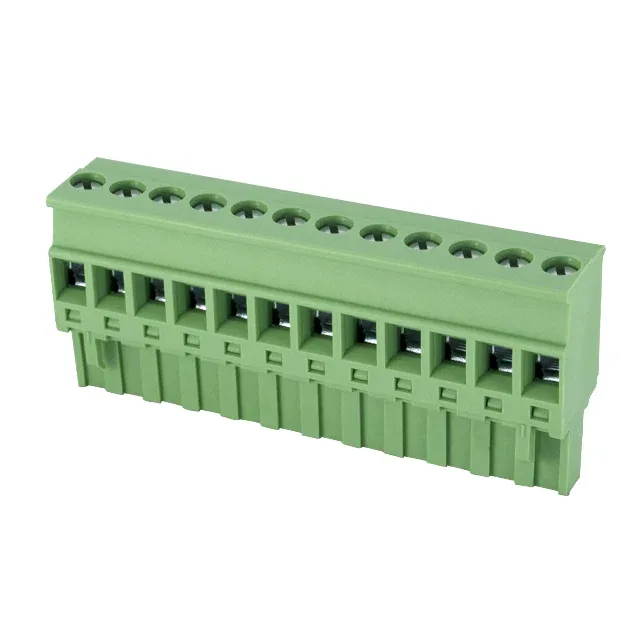

Dinkle Corporation, USA 2ESDP-12P
MPN2ESDP-12P
Active
TERM BLK 12POS 5.08MM SCRW PLG
$7.42Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series2ESDP
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | 2ESDP |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 600 V |
| Current - UL | 15 A |
| Current - IEC | 18A |
| Plug wire entry | 90° |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.2-2.5mm² |
| Operating temperature | -40°C ~ 120°C |
| Color | Green |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 12 |
| Positions per level | 12 |
| Contact mating finish | Tin |
