Dinkle Corporation, USA AK6-TN
MPNAK6-TN
Active

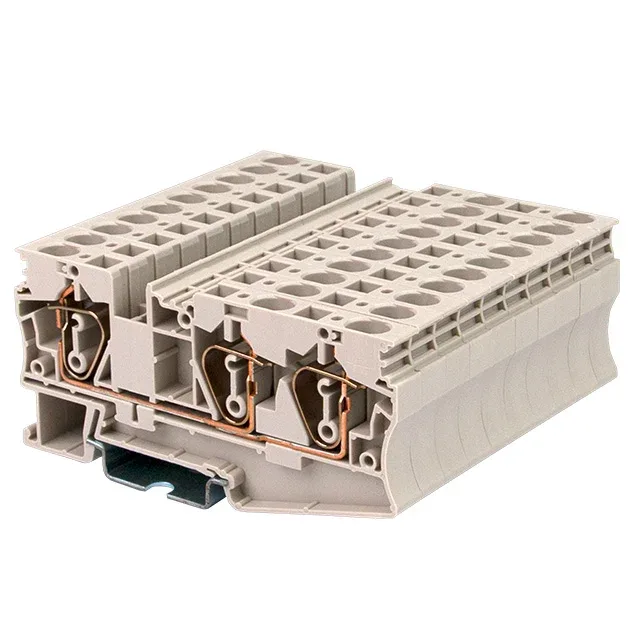

RAIL TERM BLK FEED THRU 8-24AWG
$7.02Ref. price · indicative, final on quote
SeriesAK6
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Feed Through |
| Series | AK6 |
| Voltage - UL | 600V |
| Voltage - IEC | 800V |
| Current - UL | 35 A |
| Current - IEC | 41 A |
| Terminal - width | 8.0mm |
| Wire gauge or range - AWG | 8-24 AWG |
| Wire gauge or range - mm2 | 0.5-10mm² |
| Color | Beige |
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Number of levels | 1 |
| Stripping length | 12mm |
| Termination style | Push In, Spring |
| Positions | 3 |
