Dinkle Corporation, USA DK16N
MPNDK16N
Active

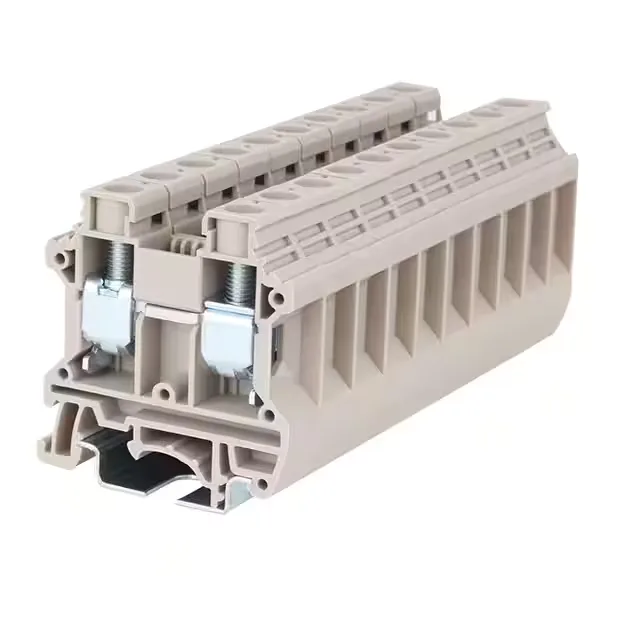

RAIL TERM BLK FEED THRU 3-14AWG
$6.21Ref. price · indicative, final on quote
SeriesDK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Feed Through |
| Series | DK |
| Voltage - UL | 600V |
| Voltage - IEC | 1000V |
| Current - UL | 88 A |
| Current - IEC | 76 A |
| Terminal - width | 49.5mm |
| Wire gauge or range - AWG | 3-14 AWG |
| Wire gauge or range - mm2 | 1.5-16mm² |
| Color | Beige |
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL91 V-0 |
| Package | Bulk |
| Number of levels | 1 |
| Stripping length | 14mm ~ 16mm |
| Termination style | Screw |
| Positions | 2 |
