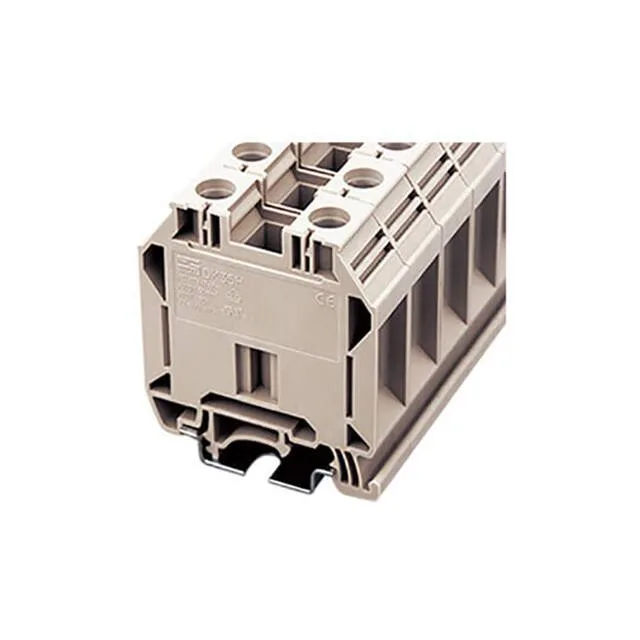

Dinkle Corporation, USA DK35H
MPNDK35H
Active
SCREW TERM BLK FEED THROUGH 12~1
$13.07Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDKN
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Feed Through |
| Series | DKN |
| Voltage - UL | 600V |
| Voltage - IEC | 1000V |
| Current - UL | 150 A |
| Current - IEC | 150 A |
| Terminal - width | 16.0mm |
| Wire gauge or range - AWG | 1/0-12 AWG |
| Wire gauge or range - mm2 | 2.5-50mm² |
| Color | Gray |
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Number of levels | 1 |
| Stripping length | 16mm ~ 18mm |
| Termination style | Screw |
| Positions | 2 |
