Dinkle Corporation, USA DK4N-TF(5X20)
MPNDK4N-TF(5X20)
Active

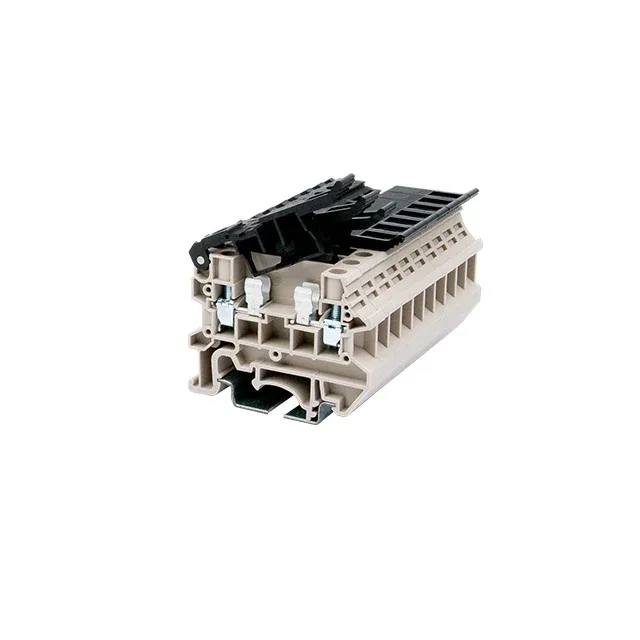

RAIL TERM BLK DISCONN 10-22AWG
$4.6700Ref. price · indicative, final on quote
SeriesDK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Disconnect, Feed Through |
| Series | DK |
| Disconnect type | Fuse, Lever |
| Voltage - UL | 600V |
| Voltage - IEC | 800V |
| Current - UL | 12 A |
| Current - IEC | 12 A |
| Terminal - width | 53.3mm |
| Wire gauge or range - AWG | 10-22 AWG |
| Wire gauge or range - mm2 | 0.14-4mm² |
| Color | Beige |
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Number of levels | 1 |
| Stripping length | 8mm ~ 10mm |
| Termination style | Screw |
| Positions | 2 |
