Dinkle Corporation, USA EC381VM-07P
MPNEC381VM-07P
Active

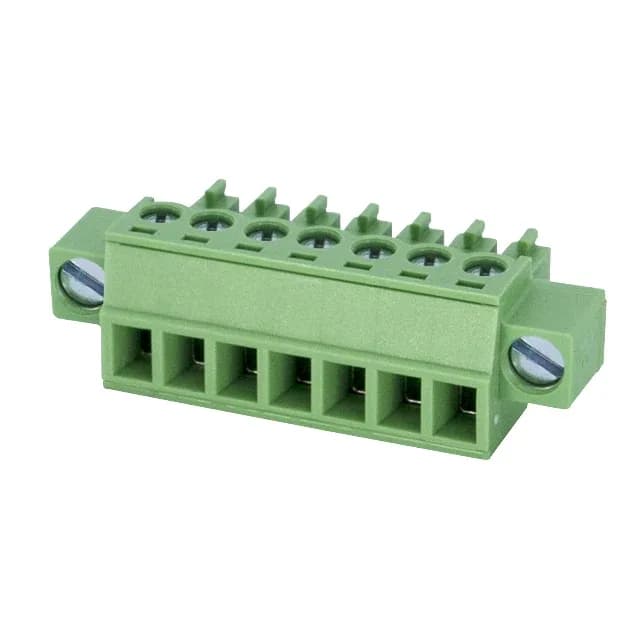

TERM BLK 7POS 3.81MM SCRW PLG
$5.2900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEC381VM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | EC381VM |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 320 V |
| Current - UL | 8 A |
| Current - IEC | 14A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 14-28 AWG |
| Wire gauge or range - mm2 | 0.2-1.5mm² |
| Operating temperature | -40°C~120°C |
| Color | Green |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 7 |
| Positions per level | 7 |
| Contact mating finish | Tin |
