Eaton - Bussmann Electrical Division TB100-06SP
MPNTB100-06SP
Active

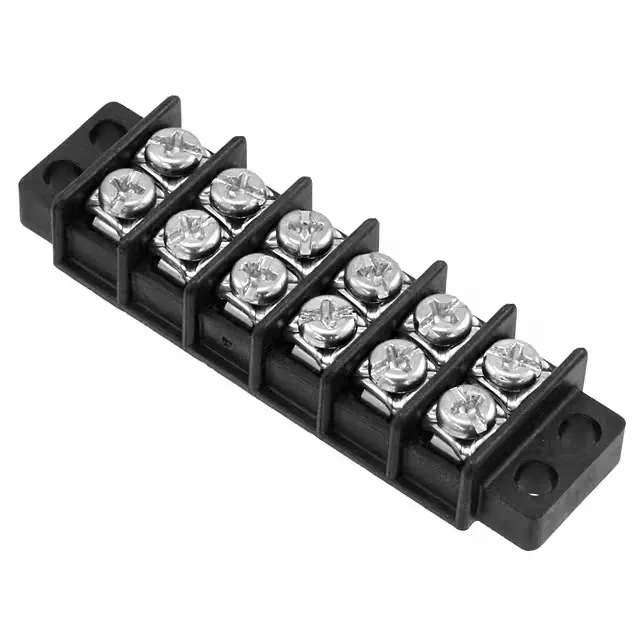

CONN BARRIER STRIP 6CIRC 0.375"
$14.54Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMagnum® TB100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Magnum® TB100 |
| Barrier type | 2 Wall (Dual) |
| Mounting | Chassis, Panel |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 30A |
| Wire gauge | 14-22 AWG |
| Terminal screw finish | Zinc |
| Number of wire entries | 12 |
| Terminal screw material | Steel |
| Operating temperature | -40°C ~ 130°C |
| Color | Black |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.375\" (9.53mm) |
| Package | Bulk |
| Features | Flange |
| Rows | 2 |
| Top termination | Screws with Captive Plate |
| Bottom termination | Closed |
| Number of circuits | 6 |
