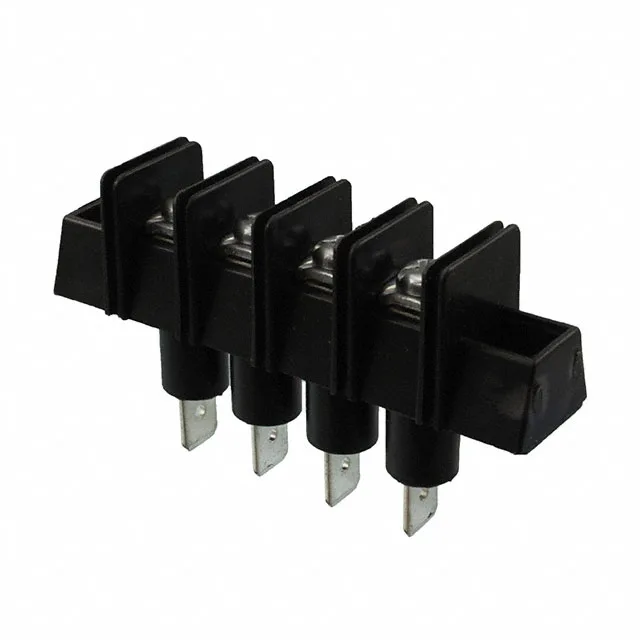

CONN BARRIER STRIP 4CIRC 0.437"
$5.74Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | A3000 |
| Barrier type | 2 Wall (Dual) |
| Mounting type | Chassis, Panel |
| Terminal block type | Barrier Block |
| Voltage rating | 600V |
| Current rating | 30A |
| Wire gauge | 12-22 AWG |
| Terminal screw finish | Zinc |
| Number of wire entries | 4 |
| Terminal screw material | Steel |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Material - insulation | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.437\" (11.10mm) |
| Package | Bulk |
| Features | Flange |
| Rows | 1 |
| Top termination | Screws with Captive Plate |
| Bottom termination | Quick Connect (0.250\"), Insulated |
| Number of circuits | 4 |
Sourcing this connector
Eaton - Electronics Division A31930407 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Eaton - Electronics Division and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
