Eaton - Electronics Division EM278502
MPNEM278502
Active

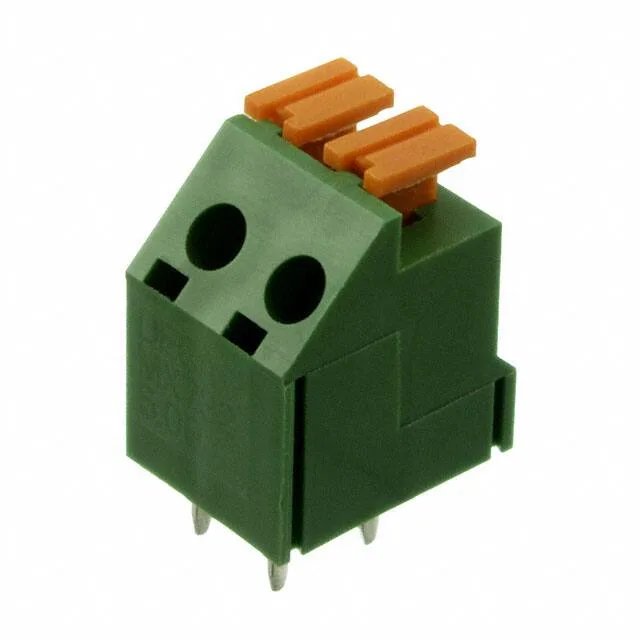

TERM BLOCK 2POS 45DEG 5MM PCB
$1.18Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesEuro-Mag EM2785
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Euro-Mag EM2785 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 7 A |
| Wire gauge | 16-22 AWG |
| Wire termination | Screwless - Push Button Clamp |
| Operating temperature | -40°C ~ 105°C |
| Housing material | Thermoplastic |
| Clamp material - plating | Steel, Stainless |
| Contact material - plating | Brass - Tin Plated |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Number of levels | 1 |
| Mating orientation | 45° (135°) Angle with Board |
| Positions per level | 2 |
