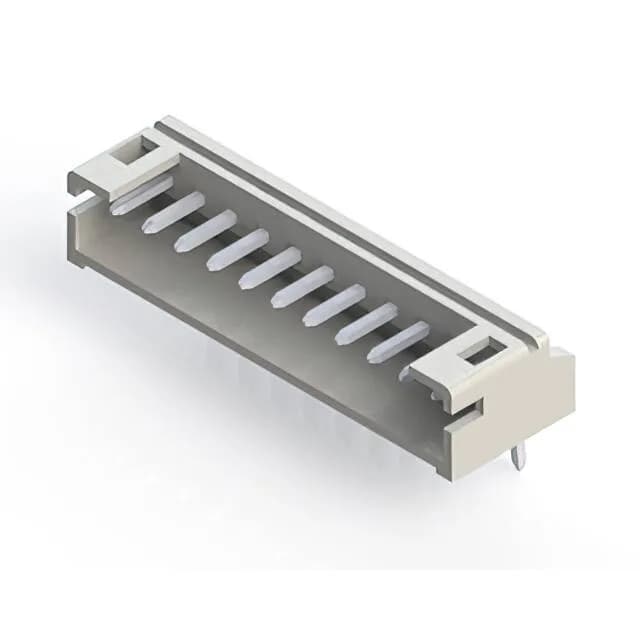

EDAC Inc. 140-511-415-000
MPN140-511-415-000
Active
$0.2333Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 140 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 100VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
