Panel-mount filtered inlet

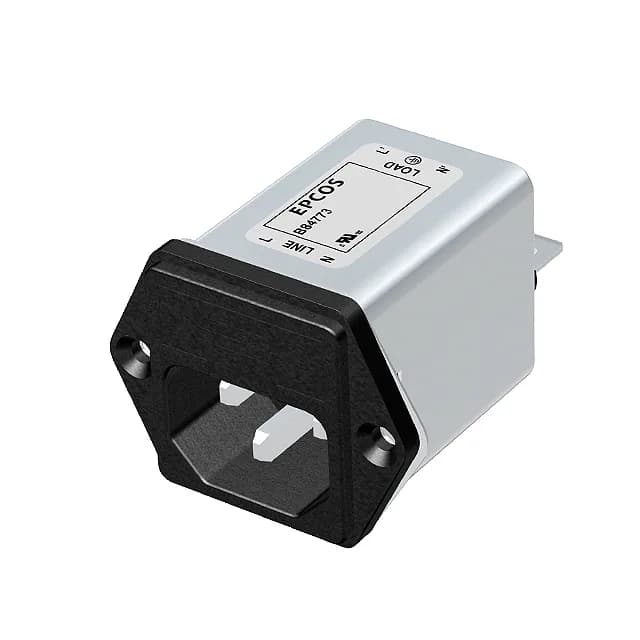

The B84773A0010A000 is a 3-position IEC 320-C14 power entry module from EPCOS, part of the B84773 series, combining a receptacle, EMI/RFI filter, and fuse holder in one panel-mount flange assembly. Rated 10 A at 250 VAC/DC, it terminates via quick-connect 0.250" (6.3mm) tabs and accepts a fuse (not included) in the integrated fuse holder.
Filter and fuse integration
The built-in commercial-grade EMI/RFI filter attenuates line noise on the AC input, reducing conducted emissions from the equipment side. A front- or rear-side mount option allows the module to be installed from either side of the panel; the variable panel cutout accommodates different enclosure designs.
Compliance and sourcing
Approved under cUL, ENEC, and UL standards, and ROHS3 compliant — documentation is available from EPCOS - TDK Electronics.
