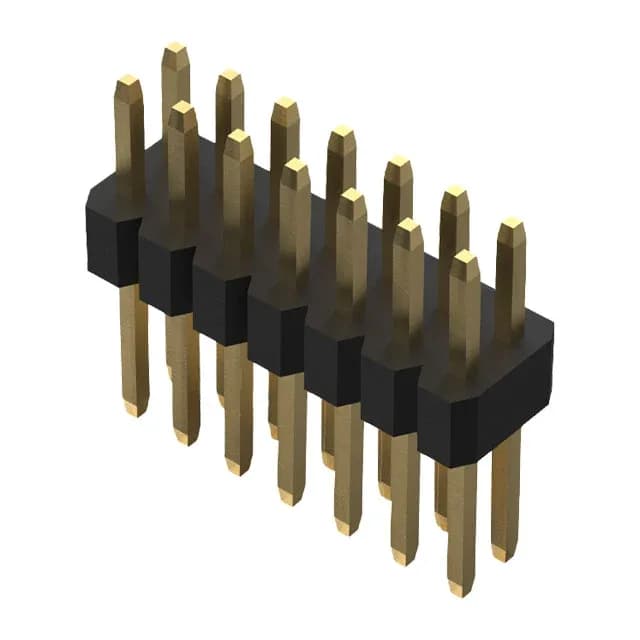

GCT BC035-14-A-0200-0300-L-G
MPNBC035-14-A-0200-0300-L-G
Active
14W, 1.0MM PITCH PIN HDR, DIL, T
$1.2700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBC035
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BC035 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC/DC |
| Current rating | 1A per Contact |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.047\" (1.20mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Box |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.039\" (1.00mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.244\" (6.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.079\" (2.00mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
