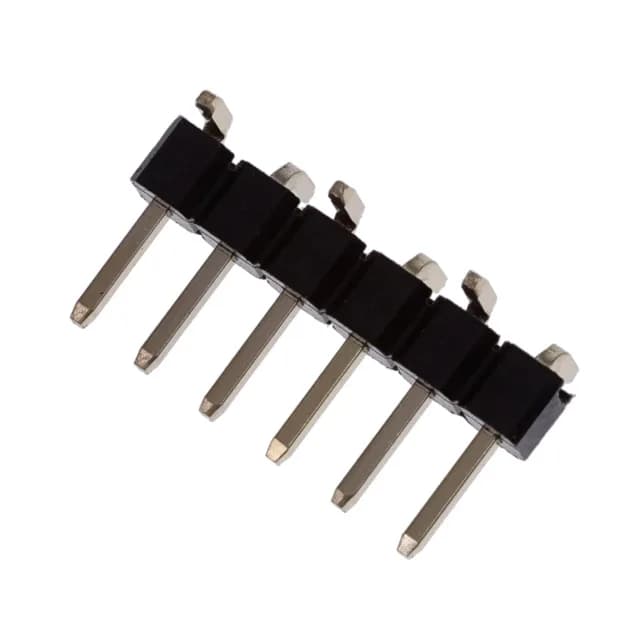

GCT BG055-06A-1-0450-0530-0350-L-D
MPNBG055-06A-1-0450-0530-0350-L-D
Active
6W, 2.54MM PITCH PIN HDR, SIL, S
$0.3800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBG055
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BG055 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Features | Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact length - mating | 0.177\" (4.50mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
