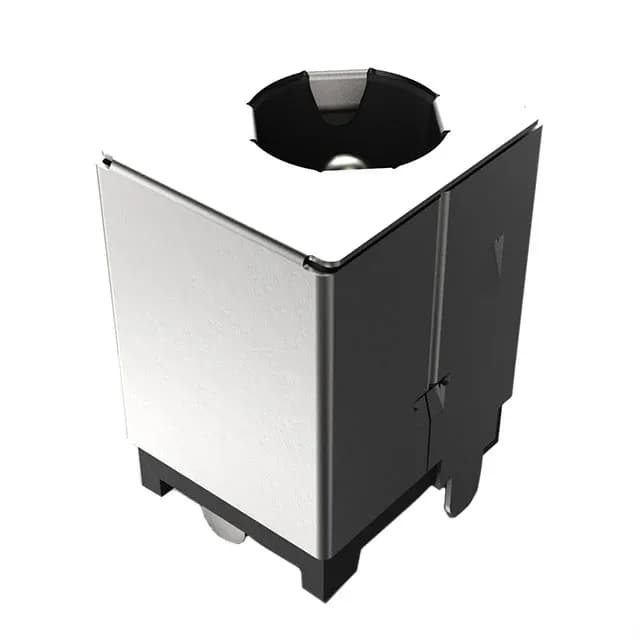

GCT DCJ250-15-A-K1-C
MPNDCJ250-15-A-K1-C
Active
DC HIGH POWER JACK, THRU HOLE, V
$1.3600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDCJ250-15
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DCJ250-15 |
| Mounting | Through Hole |
| Connector type | Jack |
| Voltage - rated | 20VDC |
| Current rating | 7 A |
| Operating temperature | -20°C ~ 70°C |
| Body color | Black |
| Contact material | Brass, Phosphor Bronze |
| Housing material | Polyamide (PA9T), Nylon 9T |
| Mating length (Depth) | 0.372\" (9.45mm) |
| Contact material - plating | Silver |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Gender | Male |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shielding | Shielded |
| Termination | Solder |
| Actual diameter | 0.098\" (2.50mm ID), 0.260\" (6.60mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.55mm ID (0.100\"), 5.50mm OD (0.217\") |
