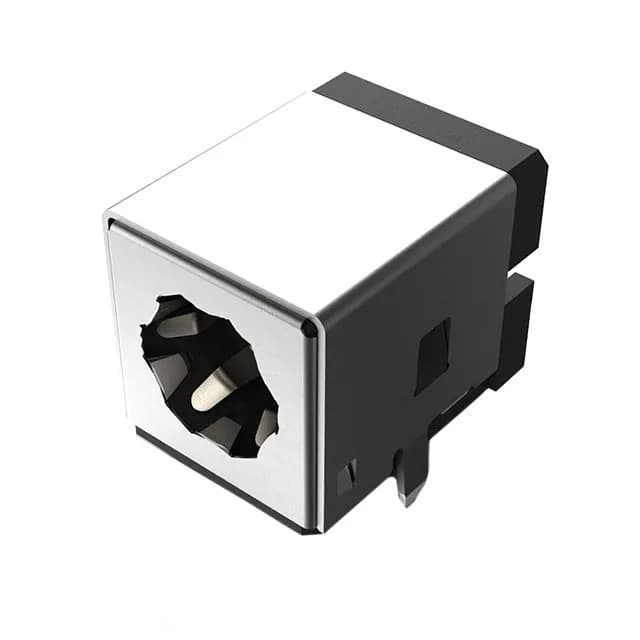

GCT DCJ250-20-B-K1-A — Wire-to-Board Connectors

GCT DCJ250-20-B-K1-A

MPNDCJ250-20-B-K1-A
Active

DC HIGH POWER JACK, THRU HOLE, H

$1.3600Ref. price · indicative, final on quote
GCT DCJ250-20-B-K1-A datasheet (PDF)
RoHSROHS3 Compliant
SeriesDCJ250-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

DCJ250-20-B-K1-A key specifications
ParameterValue
SeriesDCJ250-20
MountingThrough Hole, Right Angle
Connector typeJack
Voltage - rated20VDC
Current rating8 A
Operating temperature-20°C ~ 70°C
Body colorBlack
Contact materialCopper Alloy, Zinc Alloy
Housing materialPolyamide (PA10T), Nylon 10T
Contact material - platingSilver
Material flammability ratingUL94 V-0
GenderMale

All specifications

DCJ250-20-B-K1-A additional specifications
ParameterValue
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide
ShieldingShielded
TerminationSolder
Actual diameter0.098\" (2.50mm ID), 0.209\" (5.30mm OD)
Internal switchDoes Not Contain Switch
Number of positions (Contacts)2 Conductors, 2 Contacts
Industry recognized mating diameter2.55mm ID (0.100\"), 5.50mm OD (0.217\")
