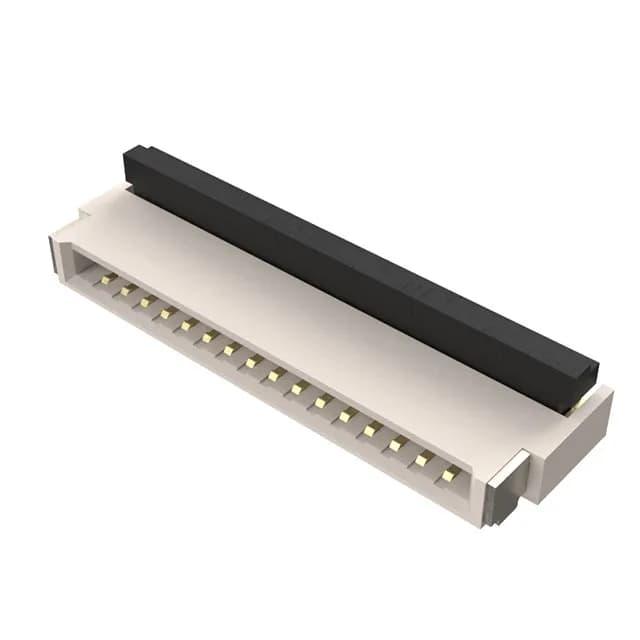

GCT FFC2B28-06-G
MPNFFC2B28-06-G
Active
$0.4200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FFC2B28 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Top and Bottom |
| Voltage rating | 30V |
| Current rating | 0.2A |
| Operating temperature | -25°C ~ 85°C |
| Housing color | Natural |
| Actuator color | Black |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Thermoplastic |
| Height above board | 0.039\" (1.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Features | Solder Retention |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | GCT |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Flip Lock, Backlock |
| FFC, FCB thickness | 0.30mm |
| Positions | 6 |
| Contact finish thickness | Flash |
