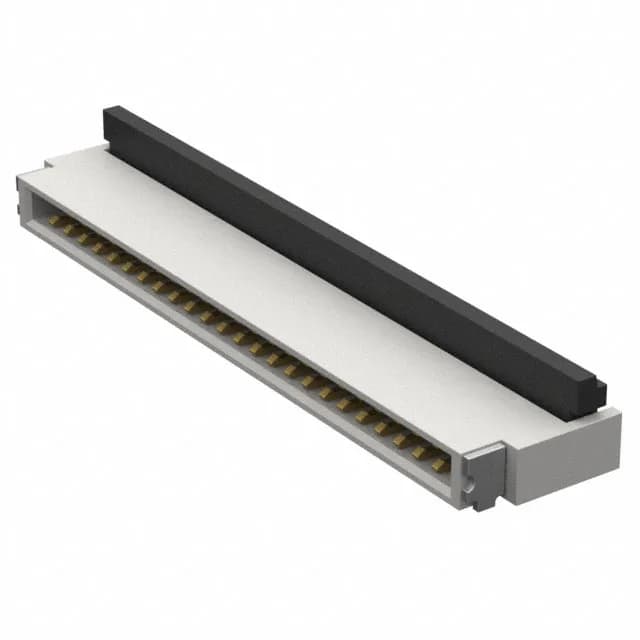

GCT FFC2B28-24-G
MPNFFC2B28-24-G
Active
$0.6700Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FFC2B28 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Top and Bottom |
| Voltage rating | 30V |
| Current rating | 0.2A |
| Operating temperature | -25°C ~ 85°C |
| Housing color | Natural |
| Actuator color | Black |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Thermoplastic |
| Height above board | 0.039\" (1.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Flip Lock, Backlock |
| FFC, FCB thickness | 0.30mm |
| Positions | 24 |
| Contact finish thickness | Flash |
