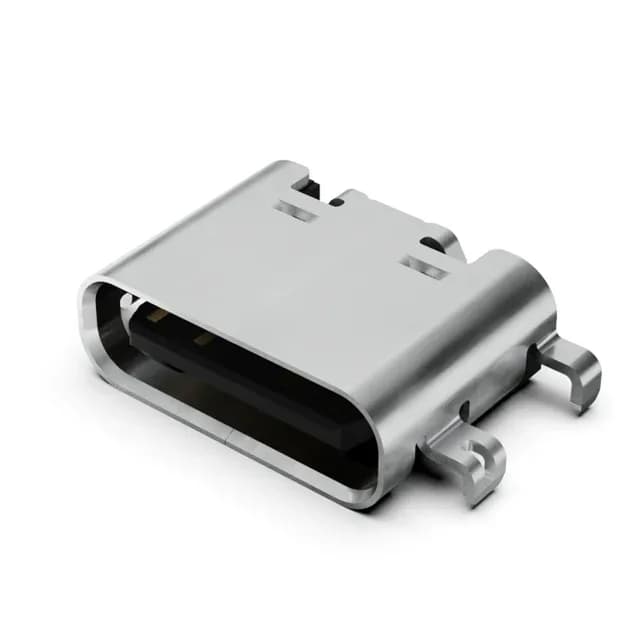

GCT USB4505-03-0-A
MPNUSB4505-03-0-A
Active
USB C REC 16P 3U" MID MNT 1.0MM
$0.8000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesUSB4505
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | USB4505 |
| Mounting | Board Edge, Cutout; Surface Mount; Through Hole, Right Angle |
| Connector type | USB-C (USB TYPE-C) |
| Voltage - rated | 48VDC |
| Current rating | 5A |
| Positions | 24 (16+8 Dummy) |
| Mounting feature | Horizontal, Mid Mount |
| Operating temperature | -25°C ~ 85°C |
| Insulation color | Black |
| Shell (Shielding material) | Steel (SUS304) |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention Tab |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 10000 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
