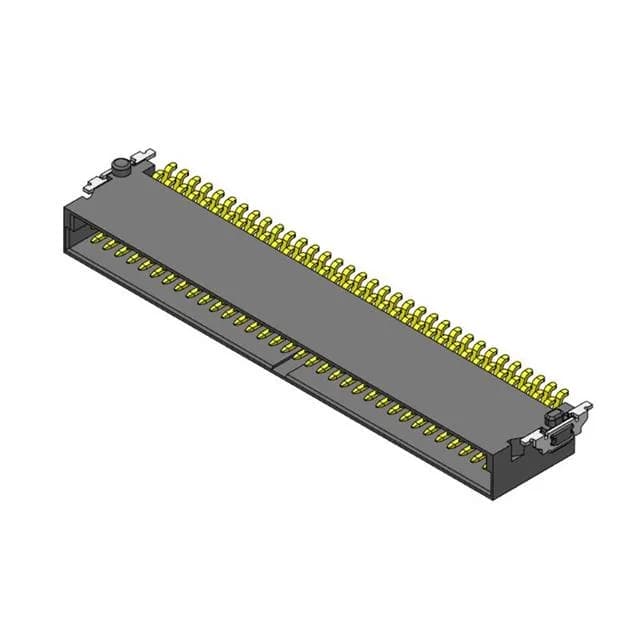

Greenconn GBED204-3479B001C1AD
MPNGBED204-3479B001C1AD
Active
$3.4700Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | GBED204 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1.7A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.165\" (4.20mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Features | Board Guide, Solder Retention |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 68 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact length - mating | 0.157\" (4.00mm) |
