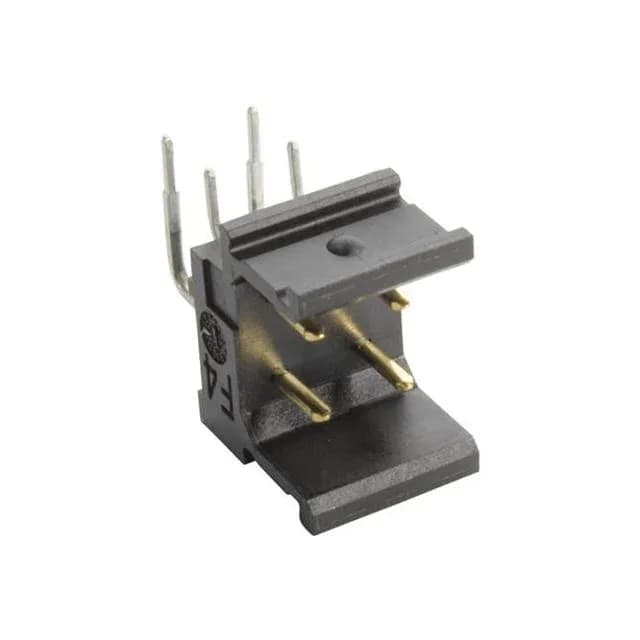

HARTING 02519041201 — Pin Headers

HARTING 02519041201

MPN02519041201
Active

4 POSITION 6A ANGLED MALE

$2.4800Ref. price · indicative, final on quote
HARTING 02519041201 datasheet (PDF)
RoHSROHS3 Compliant
Serieshar-modular®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

02519041201 key specifications
ParameterValue
Serieshar-modular®
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating6A
Operating temperature-55°C ~ 125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.579\" (14.70mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0

All specifications

02519041201 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.200\" (5.08mm)
Positions4
Row spacing - mating0.200\" (5.08mm)
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Contact finish - matingGold
