HARTING 02519091103 — Pin Headers

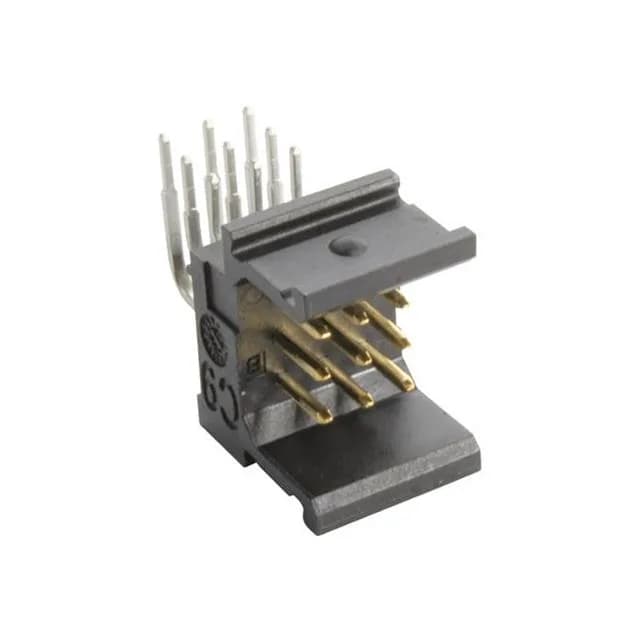

HARTING 02519091103

MPN02519091103
Active

9 POSITION 2 A ANGLED MALE

$3.3300Ref. price · indicative, final on quote
HARTING 02519091103 datasheet (PDF)
RoHSROHS3 Compliant
Serieshar-modular®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

02519091103 key specifications
ParameterValue
Serieshar-modular®
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating2A
Operating temperature-55°C ~ 125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.579\" (14.70mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0

All specifications

02519091103 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows3
Pitch0.100\" (2.54mm)
Positions9
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Contact finish - matingGold
