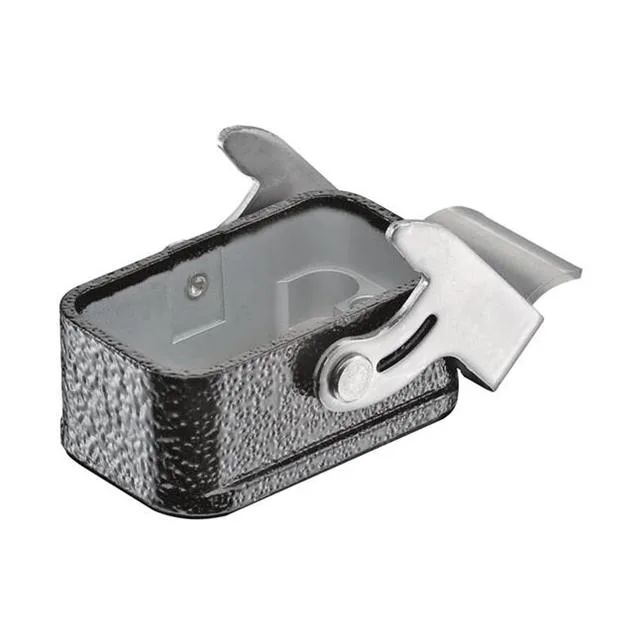

HARTING 09127080301
MPN 09127080301
Active
CONN BASE BOTTOM ENTRY
$18.85
Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesHan-Compact®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Han-Compact® |
| Connector type | Base - Panel Mount |
| IP rating | IP65 - Dust Tight, Water Resistant |
| Operating temperature | -40°C ~ 125°C |
| Housing color | Black |
| Housing finish | Powder Coated |
| Housing material | Zinc, Die Cast |
| Size (Dimension) | 1.807\" L x 1.142\" W x 0.728\" H (45.90mm x 29.00mm x 18.50mm) |
| Style | Bottom Entry |
| Package | Bulk |
| Lock location | Locking Clip (1) on Base Bottom |
09127080301 Datasheet
MPN
09127080301
