HARTING 09185065813

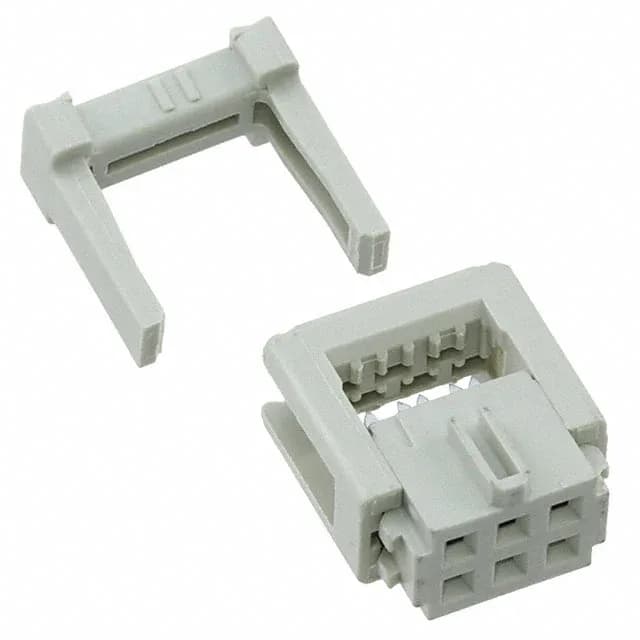

HARTING SEK 09185065813, 6-Pos IDC Receptacle, 0.100" Pitch

MPN 09185065813
Active

HARTING SEK IDC receptacle, 09185065813, 6 positions (2 rows), 0.100" (2.54mm) pitch, 26-28 AWG ribbon cable, 30.0µin gold female sockets, free-hanging, bulk.

$2.0200 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesSEK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

09185065813 specifications
ParameterValue
SeriesSEK
Wire typeRibbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge26-28 AWG
Cable terminationIDC
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through, Polarizing Key, Strain Relief
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions6
Contact finish thickness30.0µin (0.76µm)

Product details

Key Features for the Harness Build

The 09185065813: The IDC termination mass-terminates all six conductors in one press operation — no individual wire stripping or crimping. The housing includes a feed-through design, a polarizing key to prevent mis-mating, and an integral strain relief that clamps the cable jacket to protect the IDC terminations from pull forces. The wire gauge range of 26-28 AWG covers the standard ribbon cable stock used in 0.100" pitch IDC assemblies.

MPN
09185065813
